Matrix Ultrasonic Air Fan

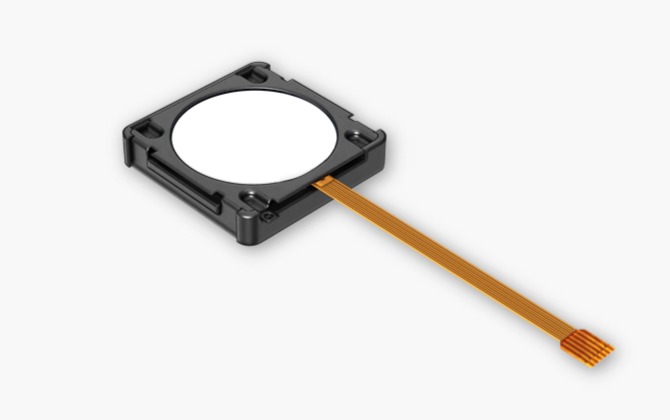

Product model: PF0002-001
With a power consumption as low as 1.2 W, the product is well suited for fanless laptops, handheld gaming devices, smartphones, and other ultra-thin electronics.
Additionally, we can also provide matching dedicated ICs.
Product Features
- - Array Ready: Scale from one fan to multiple fan arrays for hotspot cooling
- - Ultra-Thin Profile: With a thickness of only 2.4mm
- - Configurable airflow: Airflow can be configured as required, with a single unit capable of delivering up to 0.2 CFM (5.5 L/min).
Product Specifications
- Specifications
Model# | PF0002-001 |
Flow Rate (5.5L/min) | 0.2 |
Noise Level (dB) | 30 |
Power Consumption (W) | 0.2 |
Maximum Pressure (Pa) | 250 |
| Dimensions (mm) | 13 x 13 x 2.4 |
| Voltage (Vpp) | 24 |
Applications
- Fanless laptops
- Handhold gaming devices
- Switch
- Smart phones
- Other ultra-thin electronics
