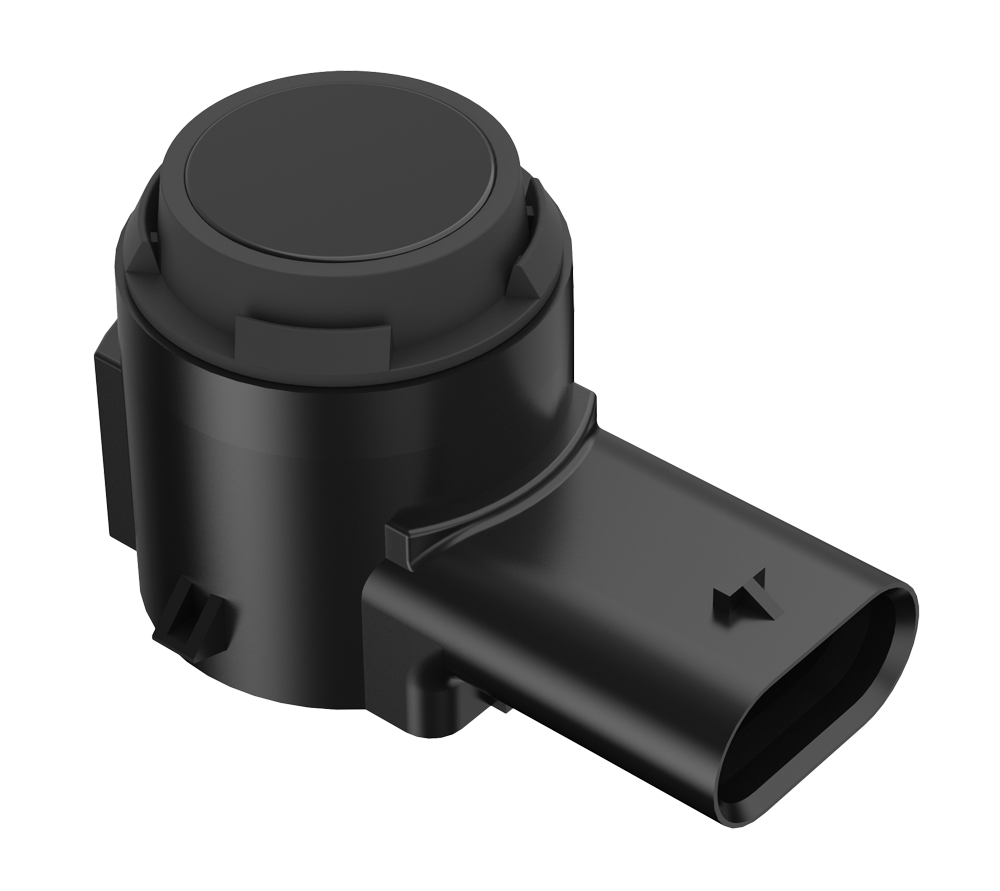

AK1 Ultrasonic Sensor
Product model: VU0005
The Ultrasonic Sensor uses the ultrasonic time-of-flight principle to accurately measure the distance between the sensor and the obstacle. The sensor outputs digital distance signal and self-test information with various communication protocols such as LIN bus and 2/3-wire IO, which makes it suitable for a variety of intelligent parking systems.This product features excellent weatherability, high stability and anti-interference ability. It can be used for intelligent parking systems, blind spot detection systems, and the obstacle avoidance systems for autonomous vehicles.
Product Features
- - Digital signal output
- - High accuracy and reliability
- - Built-in circuit which matches the self-developed transducer
Product Specifications

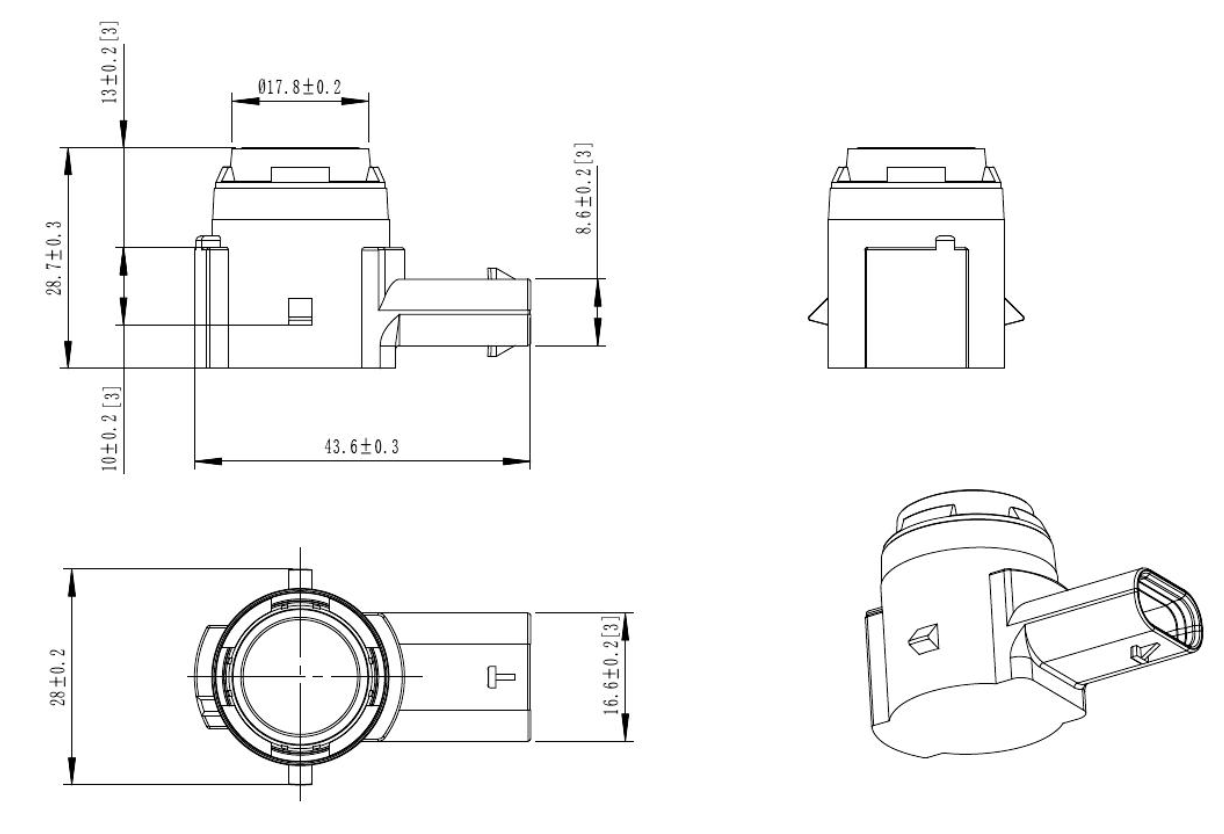

Dimensions
Dimensions | Length (mm) | Height (mm) | Width (mm) |
43.6±0.3
| 28.7±0.3
| 28±0.2
|
Specifications
Parameter | Value |
Operating Frequency | 48±1.0 kHz |
Detection Angle | Horizontal: 70±5° Vertical: 70±5° |
Detection Range | 30 ～ 500 cm |
Measurement Error | ±5 cm |
Sensitivity Range | 24~64 LSB@3m |
Communication Interface | 3‑wire I/O |
Operating Voltage (Range) | 12V (9～16V) |
Operating Current (max) | ≤10 mA |
Output Mode | Level‑triggered signal |
Operating Temperature | -40℃ ～ +85℃ |
Storage Temperature | -40℃ ～ +95℃ |
Weight | 17±2 g |
Product Ingress Protection | IP6K9K |
Material | RoHS‑compliant |
Solution | E524.09 |
Note: Test conditions: T=23±5℃, H=40~60% R.H, Φ75mm/1m PVC
Applications
- - Parking Distance Measurement System (PDC)
- Park Assist System (APA)
